Mail Transfer Agent Management Console

MailerQ comes equipped with a full MTA management console. The management console allows you to monitor the performance of your email delivery in real-time. If necessary, the management console can be used to change settings to maximize deliverability on the fly. If you have multiple instances of MailerQ running in a cluster, you can easily switch between them.

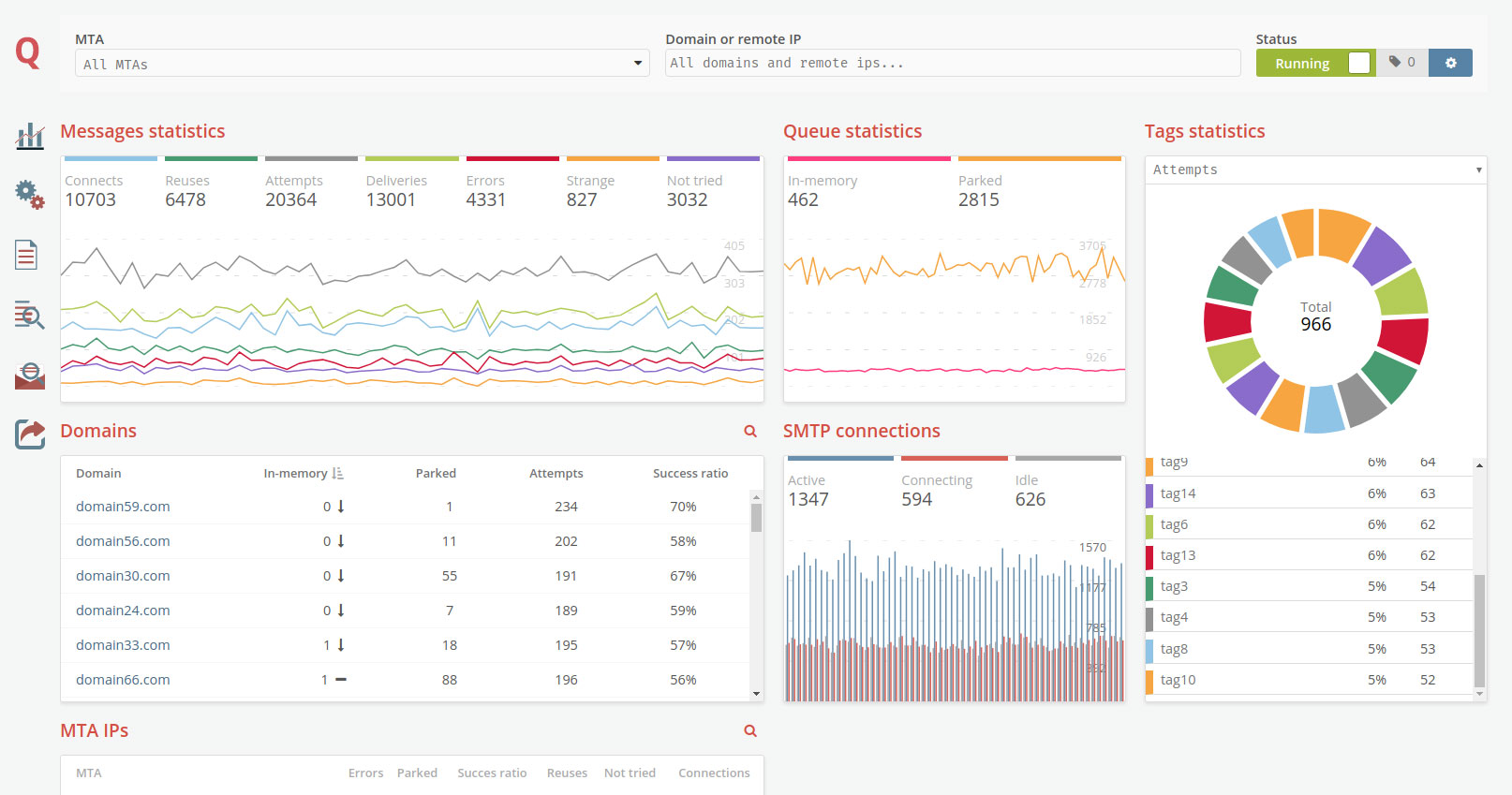

MailerQ Mail Transfer Agent Management Console

Setting up the Management Console

The management console can be enabled in MailerQ's configuration file. The following variables should be used:

www-port:               8485 (default: 8485)
www-ip:        (default:, meaning all available IP's)
www-dir:                /usr/share/mailerq/www (default: /usr/share/mailerq/current/www)
www-connections:        10

The www-port variable holds the port number for the management console; 8485 is the default. If you use port 80 (which is the default port for HTTP traffic) you can access the management console with using a browser via address http://hostname.of.your.server. If you assign a different port number (like 8485), you must include the port number in the URL: http://hostname.of.your.server:8080.

In its default setting of, the management console is accessible via all IP addresses that are assigned to the server on which MailerQ runs. If you only want to make it accessible via one specific IP, you can set the www-ip variable. Of course, the IP address that you assign must be bound to the server.


The management console is protected with a username and password to prevent anyone from accessing it. Besides setting a password, we also recommend to put the management console behind a firewall so that you will not have to worry about people breaking into it.

Since MailerQ 5.12, there are many possible ways to let users authenticate to the management console. LDAP, RADIUS, linux users, HTTP endpoints, username/password files and lastly custom scripts.

www-auth:          hardcoded://username:password,username2,password2
www-auth:          ldap://
www-auth:          radius://
www-auth:          users://user1,mailerq,user2,client*
www-auth:          file:///users.txt
www-auth:          exec:///path/to/file

The first hardcoded is simply a comma separated list of username:password pairs, separated by the ':' character. Note that this is the least safe, since the passwords will be plainly readable in the config file, in unhashed form. The ldap specifier will connect to the LDAP server and try to bind to DN=uid=username,base_dn. If this succeeds, the user is authenticated, if this fails, the user is rejected. The radius specified will simply request access to the radius server, with the shared secret secret and the identifier identifier. Make sure that the client is set up correctly, or the server will reject the packets and MailerQ logins will fail. The http will perform HTTP BASIC authentication to the endpoint, and will therefore send along the Authorization: Basic ... header. Any 2xx code is treated as a success, while any other code is treated as a failure and a rejection. The file specifier will load a simple text file that contains the usernames and passwords separated by the : character, but with the passwords in hashed form (similar to /etc/passwd). These passwords can be generated using mkpasswd -m sha-512 or openssl passwd -6, for example.

Lastly, the exec specifier will run the /path/to/file in a subprocess, and will check the return code. This way, you can easily implement any authentication you require in a script! For example, you can check a username and password combination in an SQL database, or you can ues the linux PAM modules, or you can make very custom requests. This allows you to tie the management console authentication directly into your existing user management infrastructure.

All HTML, CSS and Javascripts that are necessary for the management console are automatically installed into the /usr/share/mailerq/current/www directory. If you want to run the console from out of a different location, you can change this directory with the www-dir variable.

To limit the number of resources that can be used by the built-in HTTP server, you can use the "www-connections" variable to limit the number of simultaneous HTTP connections that can be handled. This number includes active web sockets.

Setting up a secure management console

If is a good idea to secure your management console, as it will also be used to manage private DKIM Keys; by definition, these should be kept private and thus not transferered over interceptable non-secure HTTP connections.

The following configuration file variables are relevant for enabling HTTPS support:

www-secure-port:        443 (empty by default)
www-certificate:        /path/to/certificate.crt (empty by default)
www-privatekey:         /path/to/privatekey.key (empty by default)
www-ciphers:            !aNULL:!eNULL:!LOW:!SSLv2:!EXPORT:!EXPORT56:FIPS:MEDIUM:HIGH:@STRENGTH (empty by default)

If you enable both HTTP and HTTPS, users who access the non-secure interface will automatically be forwarded to the secure interface. The www-secure-port holds the port number for the HTTPS connections (443 is the default for this, so that you won't have to include the port number in URLS). The certifate and key files, and the supported ciphers can be set using the www-certificate, www-privatekey and www-ciphers variables.

Once enabled, the encrypted management console can be accessed using the address https://hostname.of.your.server if you use default port 443, or https://hostname.of.your.server:port for any other port.

Announcing the interface on the cluster

If you have a cluster with multiple MailerQ instances, the web interface of these interfaces contains links to the other instances. MailerQ does its best to find out the URL for each of the other interfaces (by combining the host names and port numbers), but you can use the following optional config file variables to help a hand:

www-host:               your.hostname (default: auto-detected)
www-url:                https://your.hostname:port (default: auto-detected)

Rendering emails

The management console allows administrators to monitor live SMTP traffic. All incoming or outgoing connections can be intercepted, and the entire SMTP handshake (EHLO, MAIL FROM, RCPT TO, DATA) is real time visible via the management console. You can thus see he raw MIME message data that is being sent or received.

In fact, the management console even has an option to not only display the raw MIME data, but to extract the HTML source code too, and render this in your browser. With this tool you can exactly see what type of messages your users are sending, and you can take action if you see messages that look like spam, phishing or other types of abuse.

However, if you use the console to look at rendered emails, your browser automatically downloads images and other resources from the mail as well. This could trigger actions (like statistics updates) on the servers where these files are hosted. If you do not want this and you have control over these servers, you can take precautionary measures, for example by ignoring downloads that come from your IP address, or by ignoring downloads from clients with a specific user agent setting.

At Copernica we use this approach. Our devops have browsers with a special user agent setting (with Firefox you can change this using the "about:config" url), so that clicks and opens from us do not pollute mailing stats. In MailerQ's config file we have set the "render-useragent" value too, so that MailerQ refuses to share emails with browsers with a different user agent setting.

render-useragent:       Copernica DevOps

The "render-useragent" setting ensures that only browsers with the specified user agent can render emails. If you have also updated your tracking servers to ignore clicks and opens from browsers with this user agent setting, you can make sure that you can safely look at rendered emails on the management console, without triggering any actions on your tracking servers.

Advanced caching options

The resources for the web interface (like the html, css, and javascript files) are sometimes cached by your browser. This is normally ok (because you probably do not update the files anyway), but if you plan to install a new MailerQ release once every while, you can set the cache-control header in the config file:

www-cache-control:      must-revalidate

This config file option was mainly added to MailerQ to help the MailerQ web developers: they make changes to the interface all the time, and they wanted to prevent that the testers were reviewing an outdated interface. But in production environments, this setting might be useful too.

Check out the documentation on for a list of supported options for this header.
