Architecture and flexibility
For most MTA's, disk performance is the bottleneck. But not for MailerQ. MailerQ is an MTA and handles incoming and outgoing SMTP traffic and processes MIME data. But it does not write to disk. It relies on RabbitMQ and NoSQL storage for messages queues and deferred messages. These tools are fast, reliable and scalable and were designed to handle big data flows, and do that much better than an MTA could ever do.
All data that passes through MailerQ is JSON encoded. The messages that you inject and the incoming messages are all consumed from and published to RabbitMQ as JSON objects. The delivery results are also JSON encoded and hold properties like the SMTP status code, the certificate details of the receiving server and much more.
RabbitMQ is a tool for message queueing. You can create your own mail flow that passes through filters and scripts, or that can be forked and sent to mailboxes, monitors or logs.
MailerQ connects to a MongoDB or Couchbase server to store deferred messages. If you do not want to use one of these tools, you can configure MailerQ to use disk based storage instead.
MailerQ runs in multiple threads to use all your CPU's. Each of these threads has a non-blocking architecture: MailerQ does not wait for slow system calls or blocking network operations. Messages do not get stored to disk, because disk operations slow down software too. This all makes that you can send millions of messages from a single server.
The table holds the hardware requirements if you would run MailerQ, RabbitMQ and MongoDB all on the same physical machine, using gzip compression for data interchange. For a high availability setup (to survive hardware failures) it is better to setup a cluster of two or three machines.
|1 million||1||2vCPU, 6GB RAM, 100GB HDD, 100Mbps|
|10 million||1||6vCPU, 10GB RAM, 300GB HDD, 1Gbps|
|50 million||1||24vCPU, 60GB RAM, 1400GB HDD, 256GB SSD, 1Gbps|
|100 million||1||48vCPU, 120GB RAM, 3250GB HDD, 512GB SSD, 2Gbps|
Other MTA's get their settings from long and complex configuration files that are hard to maintain and difficult to update. However, you want your MTA to be easy to tune, both manually and programmatically. This is possible with MailerQ.
Most of MailerQ's runtime configuration settings come from a relational database. This allows you to update on the fly: connect to the database and run queries to insert or update data. MailerQ picks up the new settings automatically. No restart or reload is needed. This is perfect if you want to integrate MailerQ into other dashboards, API's or scripts.
Supported database engines
MailerQ supports a couple of database engines: MySQL, PostgreSQL and Sqlite. You can use the one that fits you best. The databases are only used for configuration settings, not for real time queries. MailerQ periodically copies all settings to main memory to speed up the lookups. The database therefore never is the application's bottleneck, and slow queries never slow down delivery.
MailerQ comes packed with features right out of the box to improve your email deliverability.
- JSON over AMQP
- Spool directory
- Command Line Interface
Supported SMTP extensions
- Domain, MTA and IP based rates
- Support for per-message overrides
- SMTP reply pattern matching
- Configurable deferral periods
- And much, much more...
- Real time overview
- Live SMTP traffic monitor
- Live logfile monitor
- Delivery settings
- Automatic recognition of domain groups
- Pause and resume campaigns based on message tags
- And more...
- Header insertion/modification
- CSS stylesheets to attributes
- JSON to MIME conversion
- DKIM and ARC message signing
- DMARC report handling
- DSN handling
- Local address database
- Support for clustering and chaining
- Smarthost support
- C/C++ plugin API

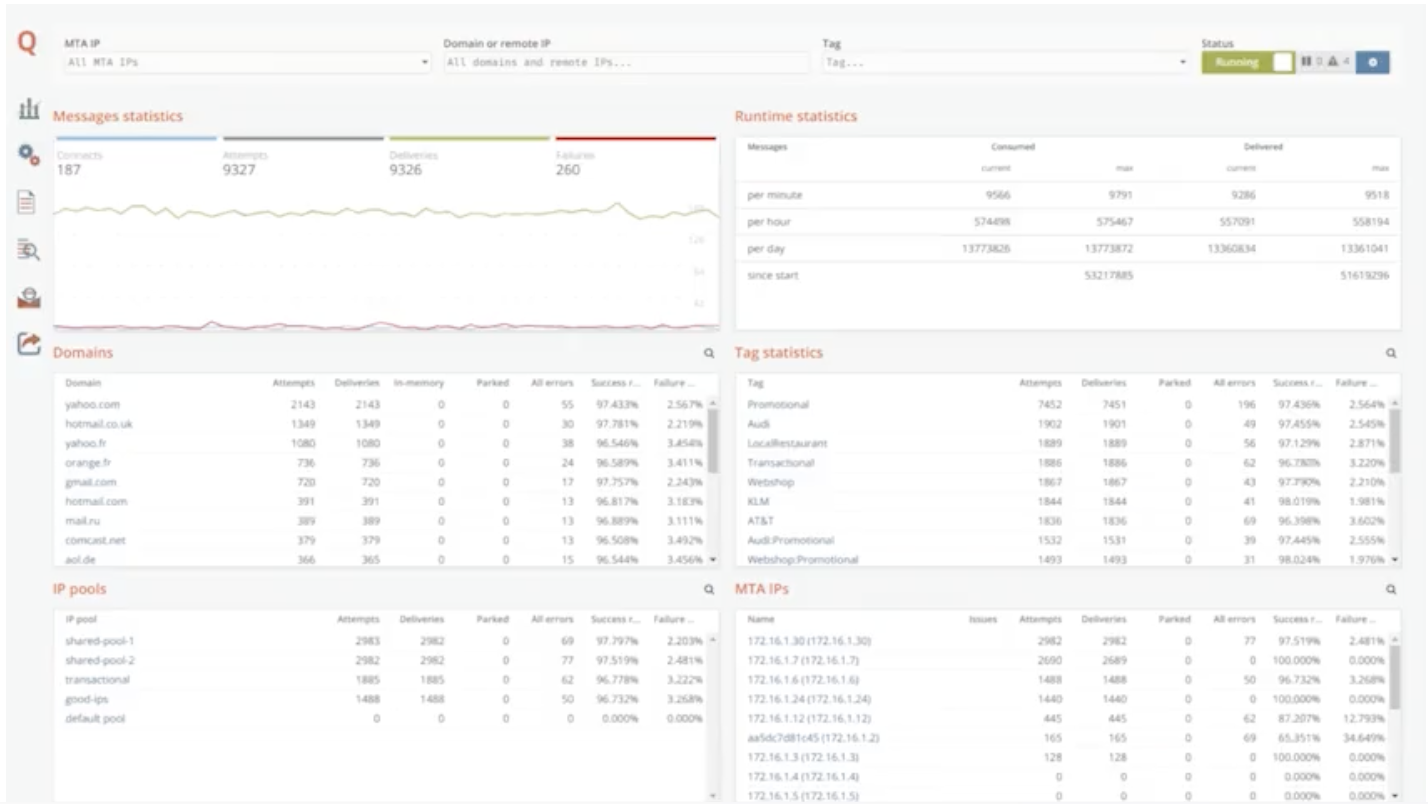

MailerQ comes with a web-based management console, where you adjust deliverability settings on the go. You can use this dashboard if you do not want to connect to the database. The management console also allows you to monitor the real time performance of your deliveries and IP's, reroute emails to other IP addresses or set up flood patterns to react to server responses.
Delivery results are published to RabbitMQ and hold information about the delivery: the SMTP response code, the SSL certificate properties, and more.
Example of the email flow through RabbitMQ and MailerQ
This queue stores transient results for all deliveries that have not yet failed or succeeded. These messages will be retried.
Success and failed queues
These queues are used for the messages that are delivered successfully or failed completely and receive a subset of the message published in the results queue.
This queue is used by MailerQ to publish all results, both successful deliveries and failures.
The built-in SMTP server
MailerQ can open one or more SMTP ports on which it accepts incoming mail. All these incoming messages are published to RabbitMQ. The incoming messages are published to the inbox queue, as set with the "rabbitmq-inbox" setting in the config file.
If you use MailerQ to handle incoming email, you can also use scripts that pick up messages from the inbox queue, and store them in mailboxes or maildirs.
To secure your SMTP traffic, you can assign a private key and certificate.
By default, the whole universe can connect to the inbound SMTP server. You can restrict this based on credentials or IP range.
Running behind HAProxy
It is possible to run MailerQ behind a HAProxy server. If you do this, external clients do not directly connect to MailerQ, but to the proxy server instead.
Please contact us for pricing information
You can send us an email at firstname.lastname@example.org or call us on +31 (0)20 520 61 90 and we will be happy to inform you.
What is an MTA?
An MTA is an application that runs on your own servers to send and receive email. MTA's are used by ISP's and ESP's and large organizations that handle their own mail.
Prefer a cloud-based solution?
Would you rather not get your hands dirty with installing, configuring and hosting MailerQ yourself? SMTPeter might be something for you. SMTPeter is a cloud-based SMTP server for fast and secure email delivery, based on MailerQ.Learn more about SMTPeter
